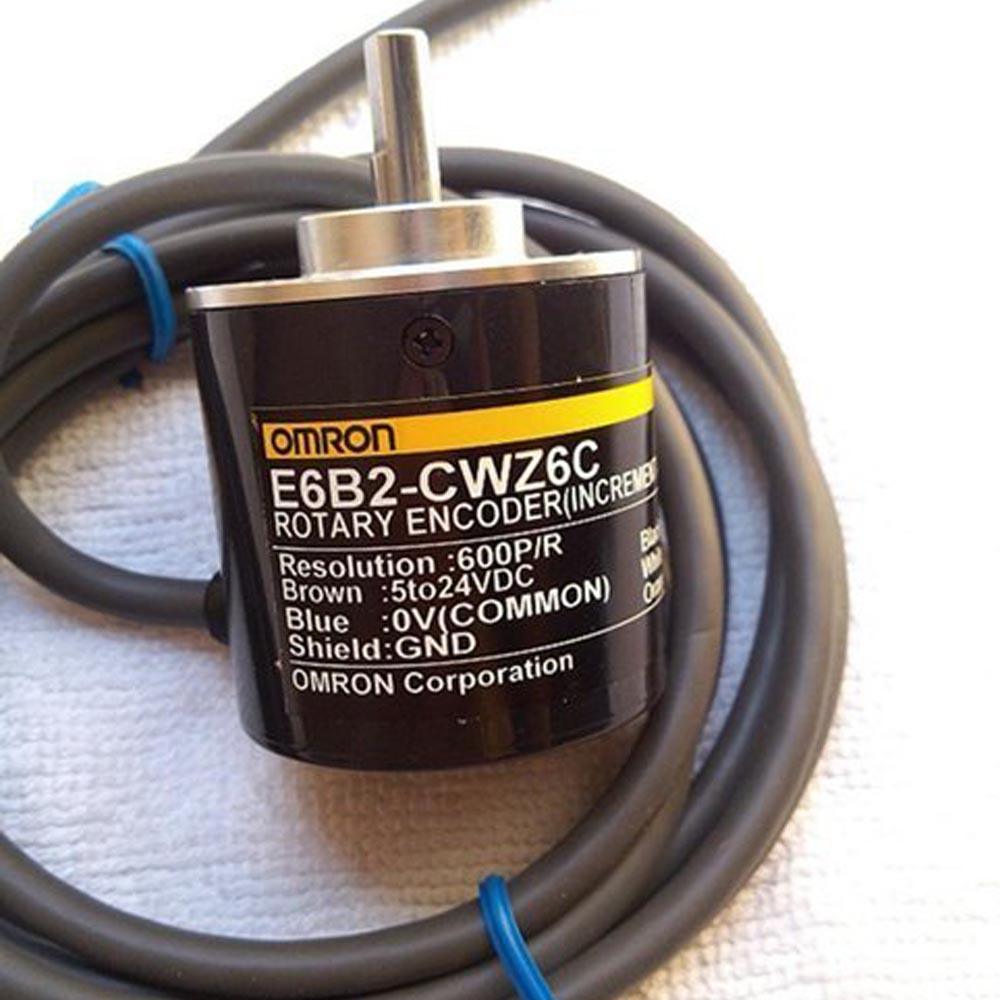

600 P/PR OMRON Incremental Rotary Encoder E6B2-CWZ6C is Incremental Rotary Encoder is General purpose incremental rotary encoders for use in positioning applications. Easy to adjust zero indexes (phase Z) with origin indicating function Rugged construction: 6mm diameter shaft with a radial load rating of 3kgf & axial load rating of 2kgf

   Specifications:

• Series: E6B
• Encoding Method: Incremental
• Resolution P/R: 600
• Control Output (Output type): NPN open-collector output
• Max Force Radial: 30 N
• Max Force Thrust: 20 N
• IP Rating: IP50
• Power Supply Voltage: 5 VDC -5% to 24 VDC +15% (ripple (p-p): 5% Max.)
• Max Rotation Frequency r/min: 6000 r/min
• Height (mm): 40

Industryparts.pk Best Online Shopping website for 600PPR OMRON Incremental Rotary Encoder E6B2-CWZ6C  in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Include:

1 x 600PPR OMRON  Incremental Rotary Encoder E6B2-CWZ6C
