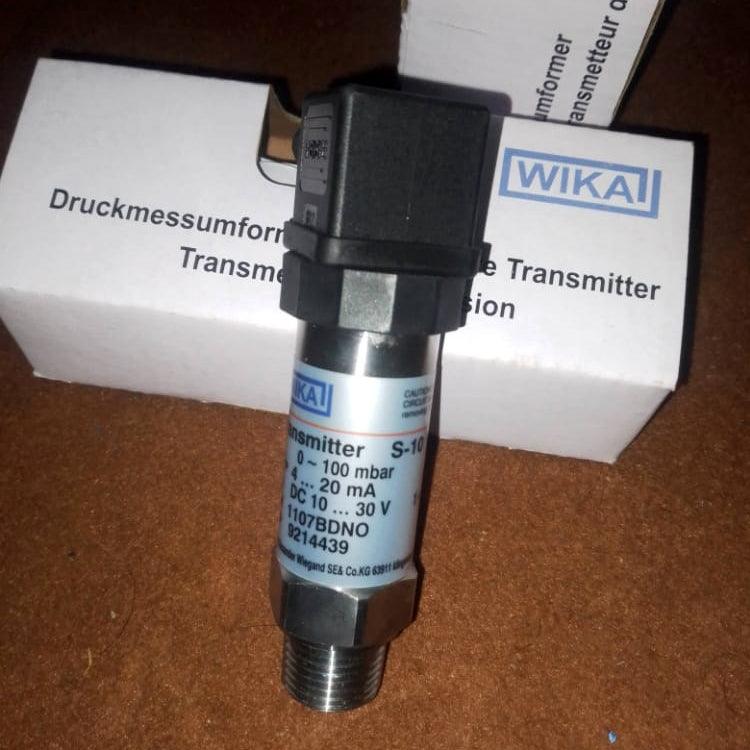

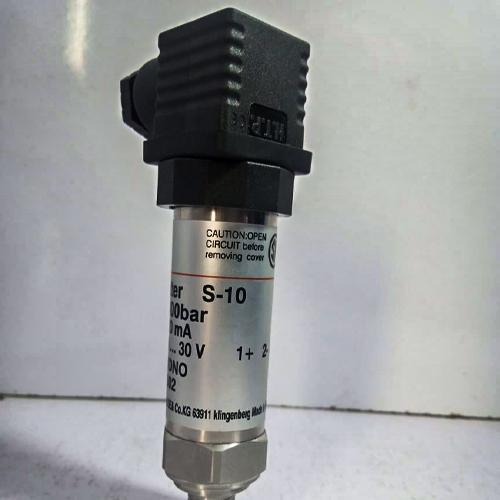

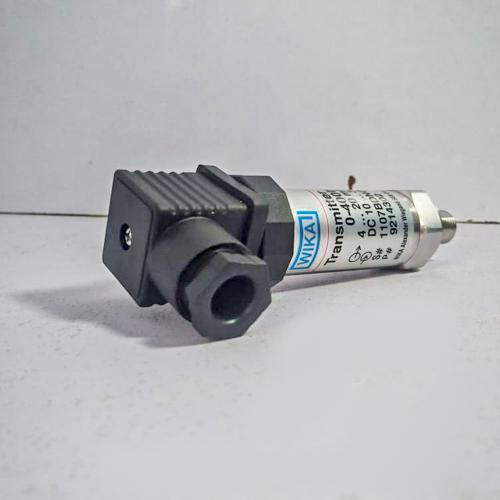

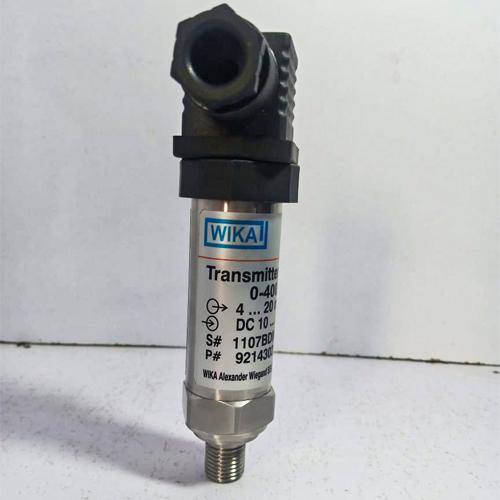

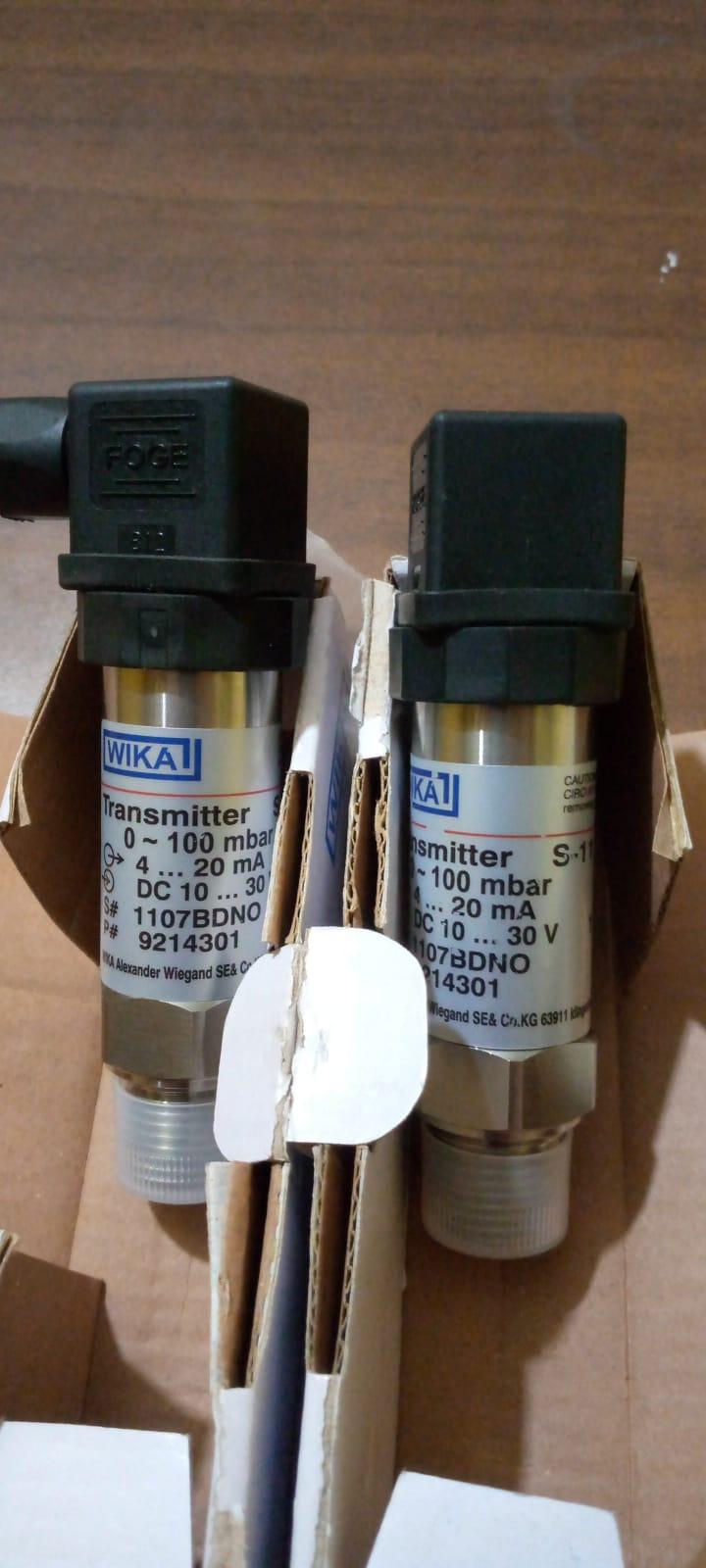

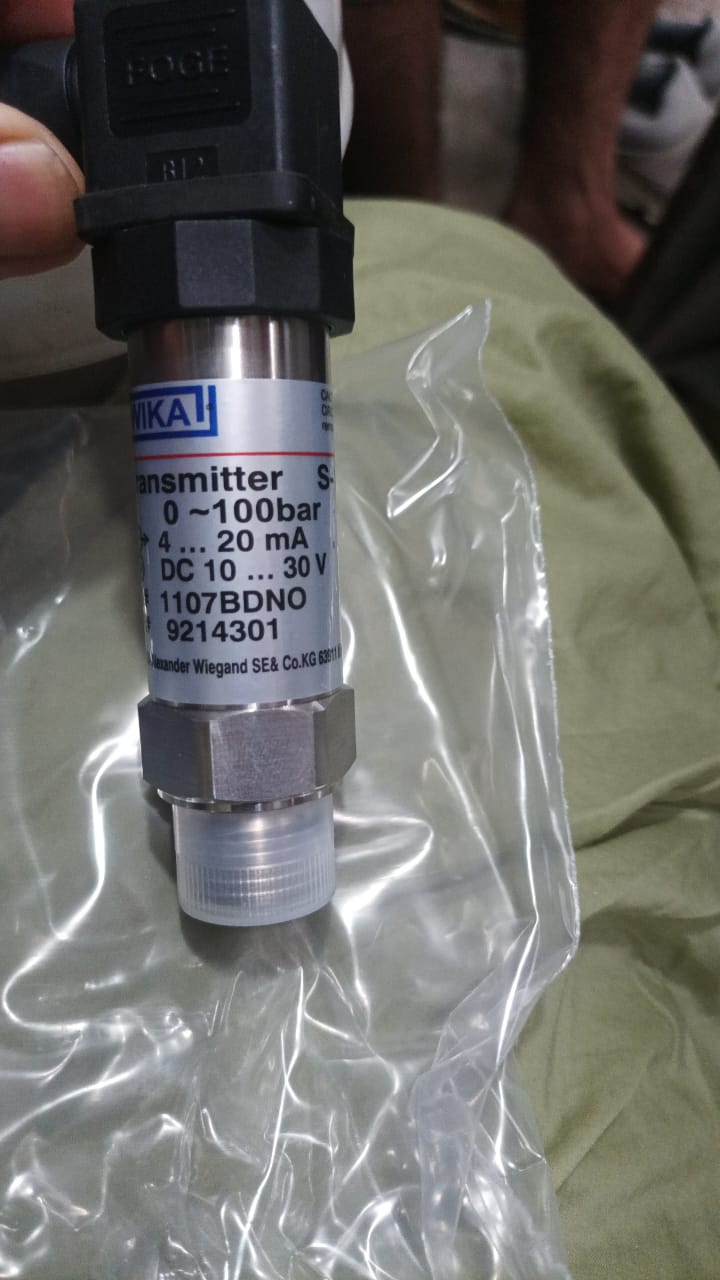

WIKA S-10 Pressure Transmitter Pakistan
Get reliable pressure measurement with the WIKA S-10 transmitter. It covers 0 to 400 bar and outputs a stable 4-20 mA signal for PLC, SCADA, and data loggers. Use it on air, water, oil, and hydraulics where accuracy and uptime matter in Pakistan.

The sensor uses SS316L wetted parts and a welded measuring cell for long life. Typical accuracy is up to +/-0.5 percent of span. Choose process threads G1/4 or 1/4 NPT and electrical connectors M12 or DIN plug. Ratings up to IP65 to IP67 protect against dust and moisture.

Installation is simple. Mount on the hex with a wrench, wire the two wire loop, and power with 10-30 VDC. Scale your controller to 0 to 400 bar. Fast response and good overload limits make it a solid choice for compressors, pumps, and hydraulic power packs.

Features:

0–400 bar range with fast 4–20 mA output
SS316L wetted parts, welded measuring cell
±0.5% span accuracy (±0.25% option)
IP65–IP67, shock and vibration resistant
M12 or DIN plug; G1/4 or 1/4 NPT process threads

Specifications:

Model: WIKA S-10 industrial pressure transmitter
Range: 0 to 400 bar (gauge); over-range per datasheet
Output/Supply: 4–20 mA, 2-wire; 10–30 VDC
Process Connection: G1/4, 1/4 NPT (SS316L)
Electrical Connection: M12x1 or DIN 175301-803; IP65–IP67

Uses:

Hydraulic power packs and presses
Air compressors and gas lines
Water pumps, RO/UF skids, boosters
Chillers, refrigeration, HVAC controls
Test benches and industrial automation

Package Include:

1 x Wika Pressure Transmitter - S-10 in Pakistan
