Mastech MS2109 True-RMS AC/DC Clamp Meter with Inrush Current Measurement

2 total reviews

Regular price Rs 5,535
Regular price Rs 6,300 Sale price Rs 5,535
Sale Sold out
BR1086

MS2108 is a versatile and invaluable tool for electricians, technicians, professionals, and alike. You can use it to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, continuity, and even diode test. This true RMS clamp meter has inrush current measurement, which is designed to capture inrush current accurately and, most importantly synchronously and provide readings that accurately depict what the circuit protector experiences. Other features include a backlit LCD display, jaw lighting, MAX/MIN, Data hold and etc.
It is a portable professional measuring instrument with an LCD and backlight easily read. The single-hand operation¡¯ design for the range switch makes measurement simple and easy. Overload protection and low battery indication are provided. It is an ideal multi-function Instrument with scores of practical applications for professional, workshop, school, hobby, and home use. Conform to the IEC61010-1 & IEC61010-032 standard Double insulation (protection class 600V CAT III and pollution degree 2)
Inrush function
The over-molding rubber case protects the meter to be stronger Clamp-on frequency function
Auto range/manual range


Features:

  1.   Perform measurements of inrush current, AC/DC voltage, and current, resistance, frequency, duty cycle, capacitance, continuity, and diode test
  2. Measuring frequency, AC/DC current, inrush current, and duty cycle by clamp
  3. True root mean square value measuring at AC A and AC V range
  4. Auto zero function at DCA range
  5.  LCD backlight and clamp lighting bulb

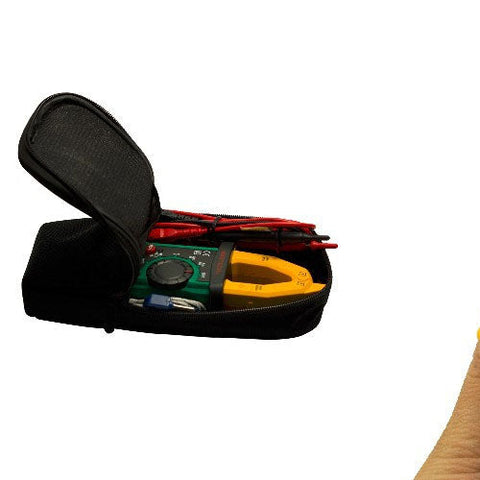

  6.  Provided with one excellent cloth bag for conveniently carrying
  7. Auto power off and low battery indication
  8.   Full overload protection and dual insulation protection
  9.   Over-molding rubber case, shake-proof, skid-proof, and good touch-feeling

Specifications:

    • Brand Name: MASTECH
    • Model Number: MS2108
    • Display: 6600 Counts
    • DC Current: 66A/600A +/- 3.0%
    • AC Current: 66A/600A +/- 3.0%
    • DC Voltage: 660m / 6.6 / 66 / 600V +/- 0.8%
    • AC Voltage: 660m / 6.6 / 66 / 600V +/- 1.0%
    • Resistance: 660 / 6.6k / 66k /660k /6.6M? +/- 1.0%, 66M? +/- 2.0%
    • Capacitance: 6.6? /66? /660? /6.6m /66mF +/- 4.0%
    • Frequency: 10 to 10kHz +/- 2.0% (from test terminal)
    • Frequency: 10 to 1kHz +/- 2.0% (from current clamp)
    • Duty Cycle: 10% ~ 95% +/- 3.0%
    • MAX. Diameter for conductor: 26mm
    • Power: 1.5V (AAA) x 3 (not included)
    • Product Size(L x W x H): 228 x 52 x 30mm
    • Product Weight: 268g
    • Package Size(L x W x H): 264 x 115 x 55mm
    • Package Weight: 483g
    • EPC_INS_402


Industryparts.pk is the Best Online Shopping website for Mastech MS2109 True-RMS AC/DC Clamp Meter with Inrush Current Measurement. Here you get Mastech MS2109 True-RMS AC/DC Clamp Meter with Inrush Current Measurement at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Include:

1 x Mastech MS2109 True-RMS AC/DC Clamp Meter
