CHINT AX‑X1 Auxiliary Contact Pakistan

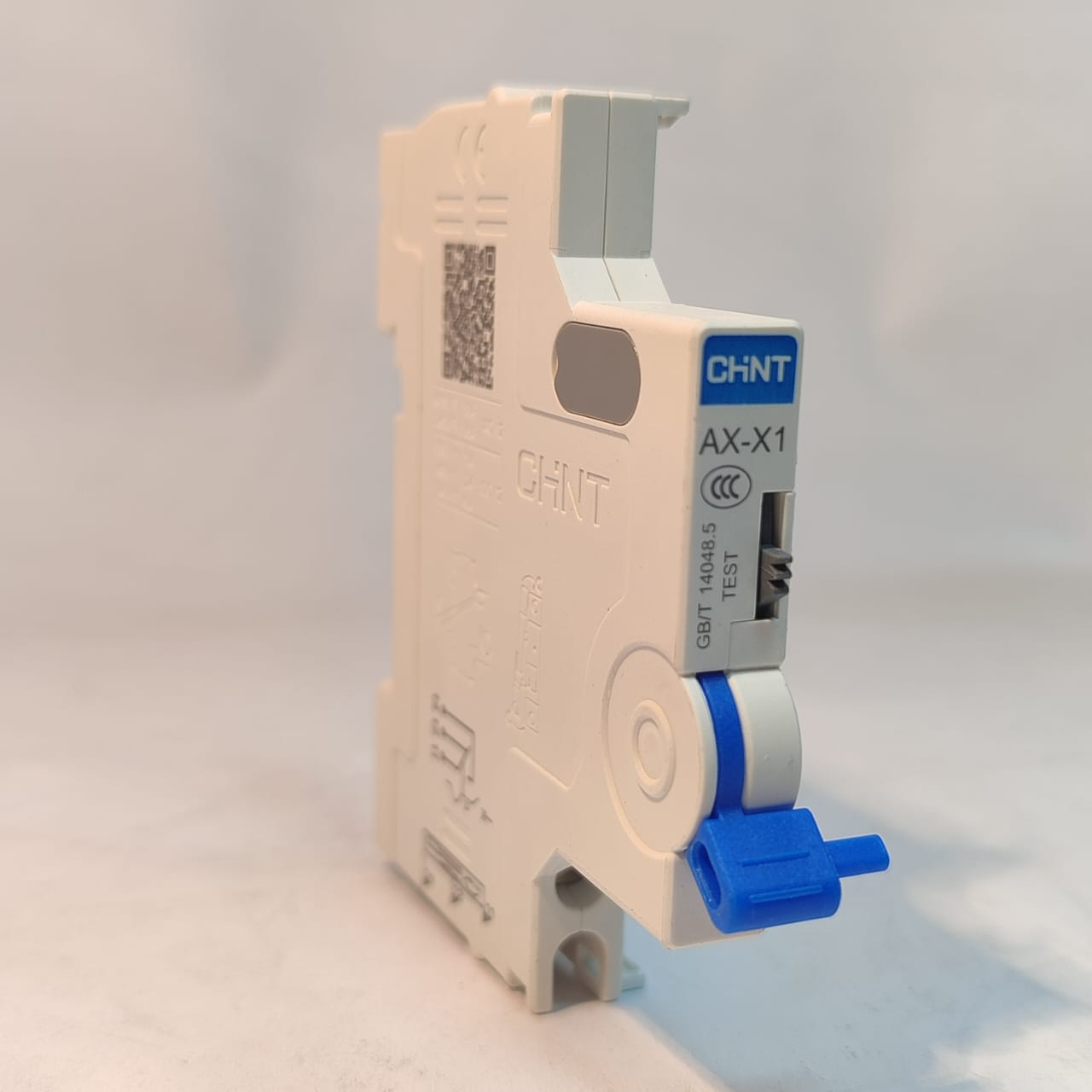

Get remote signalling of your breaker status with CHINT AX‑X1 Auxiliary Contact. This side-mounted module clicks onto a compatible CHINT MCB/RCBO and provides clean, dry contacts to indicate ON/OFF or trip. Use the contacts to drive lamps, PLC inputs, buzzers, or interlocks, improving safety and diagnostics in homes, shops and panels.

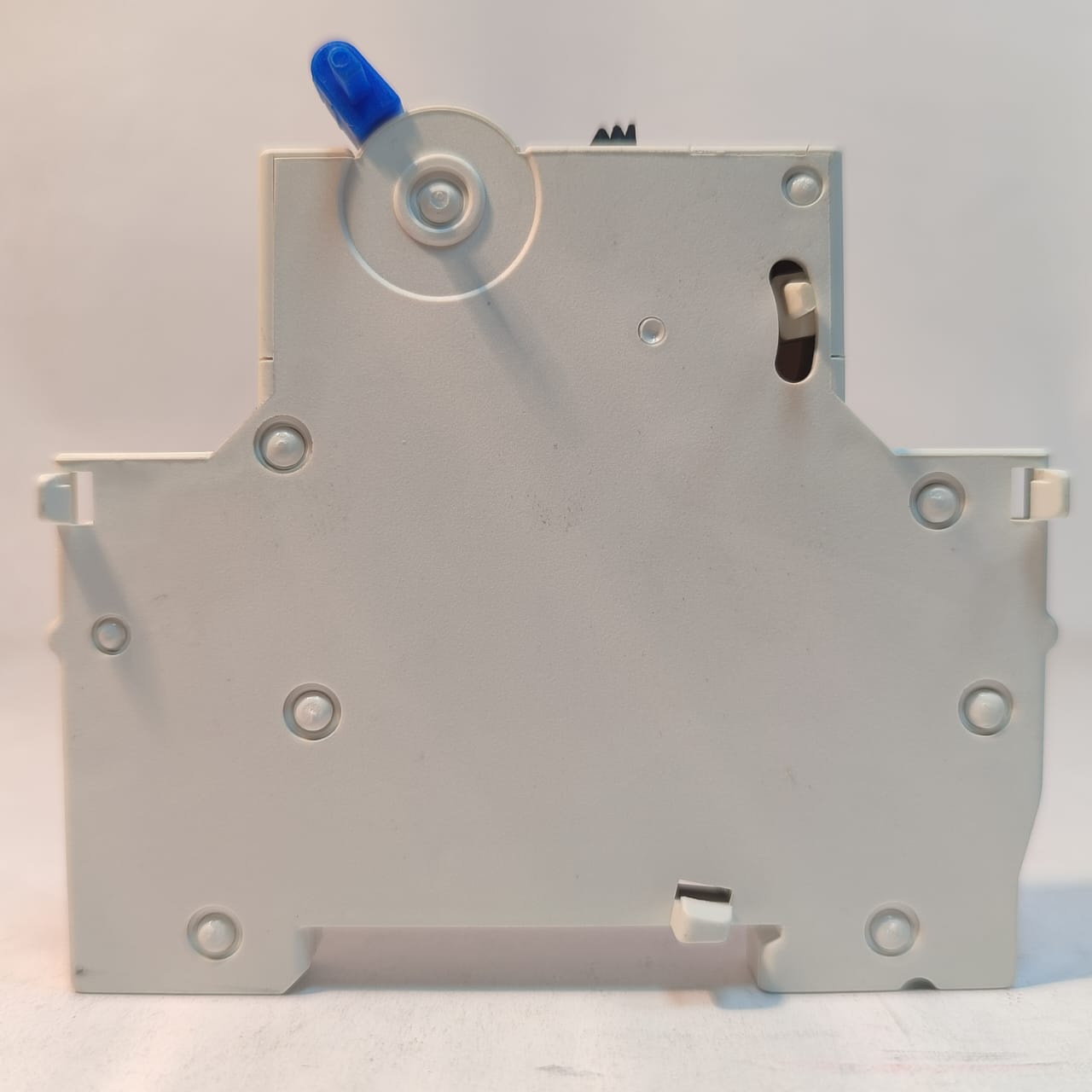

Installation is fast: hook on the DIN rail, snap to the breaker, tighten the terminals and you’re done. A blue test lever lets you check wiring without energizing the load. Clear marking shows the contact state, while the slim 18‑mm body saves space in crowded distribution boards and OEM control cabinets.
Features of CHINT AX‑X1 Auxiliary Contact Pakistan:
- Side‑mounted module for CHINT MCB/RCBO
- 1NO + 1NC dry contacts for status/trip
- Blue TEST lever for quick checks
- Slim 18‑mm body; DIN‑rail compatible
- Clear marking, screw‑clamp terminals
Specifications:
- Model: CHINT AX‑X1 (Auxiliary Contact)
- Contacts: 1NO + 1NC (changeover)
- Mounting: Side‑mount to MCB/RCBO, 35 mm DIN‑rail panel
- Electrical: For control/signal circuits AC/DC (lamp/PLC)
- Housing: Modular accessory, CHINT OEM
Uses:
- Remote ON/OFF/trip indication to PLC/BMS
- Panel alarm lamps or buzzers
- Generator/solar changeover interlocks
- Elevator, pump and HVAC control panels
- UPS and ATS boards status feedback
